Industrial Vacuum Machine

Source: Vac-Con

Industrial Vacuum Machine
Vacuum System...
Vacuum System
  • ROOTS POSITIVE DISPLACEMENT:
    • 4716RR: 1021 DVJ,4500 CFM, 27 HG
    • 5016RR: 1024 RASJ, 6000 CFM, 16 HG

Filter System

  • Features: Automatic airflow valves for wet and dry mode changeover. Two cyclones provided for wet mode. Two baghouses and 30 cartridge filters bags for dry mode. Final filter for absolute vacuum pump protection.
  • Drive Type: Direct via transfer case.
  • Filter Access: Safety "Grip-Strut" ladder to access catwalk. Baghouse access doors feature easy opening lift mechanism.
  • Bag Cleaning: Reverse pulse bag cleaning utilizes compressed air system with four station timer.

Debris Tank

  • Payload Capacity: 16 Cubic Yard (12,232 Liters).
  • Material: Corrosion and abrasion resistant 3/16 inch (4.76mm) thick Corten steel used throughout entire body and filter chambers.
  • Lift: Multi-stage telescopic lift, dumps to 50 degree angle.
  • Rear Door: Hydraulic actuated rear opener and locking mechanism.

Vacuum Breaker (Optional)

  • Size: 12 inches (305mm) full flow.
  • Cycle Time: 1.5 seconds.
  • Operation: From either control panel or emergency pendant.

Control box
  • Location: Mounted on driver's side for easy accessibility.
  • Instrumentation: Full array of gauges and warning lights allow maximum control of all systems. Bag sequence timer protected inside control box. Sealed access door with plexiglass window allows monitoring of vital functions while protecting instruments from weather.
  • Throttle: A ratchet-locking type control is standard. Toggle switch on electronic engines.

Options
  • Top Mount Power or Manual Rotation Boom.
  • Inlet Air Temperature Gauge.
  • Debris Tank Vibrators.
  • Tank Auger System.
  • Pump-Off Systems.
  • Special Lightning Packages.
  • Blow-Off System.
  • Material Return System (baghouse and cyclone clean out).
  • Wash Down Water System.
  • Tool Boxes.
  • Air Cannon Bag Cleaning System.
  • Rapid Controlled Variable Breaker.
  • HEPA Rated Filtration System.

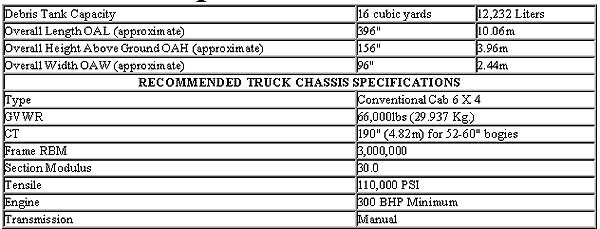

Specifications


Vac-Con, 969 Hall Park Drive, Green Cove Springs, FL 32043. Tel: 904-284-4200; Fax: 904-284-3305.
